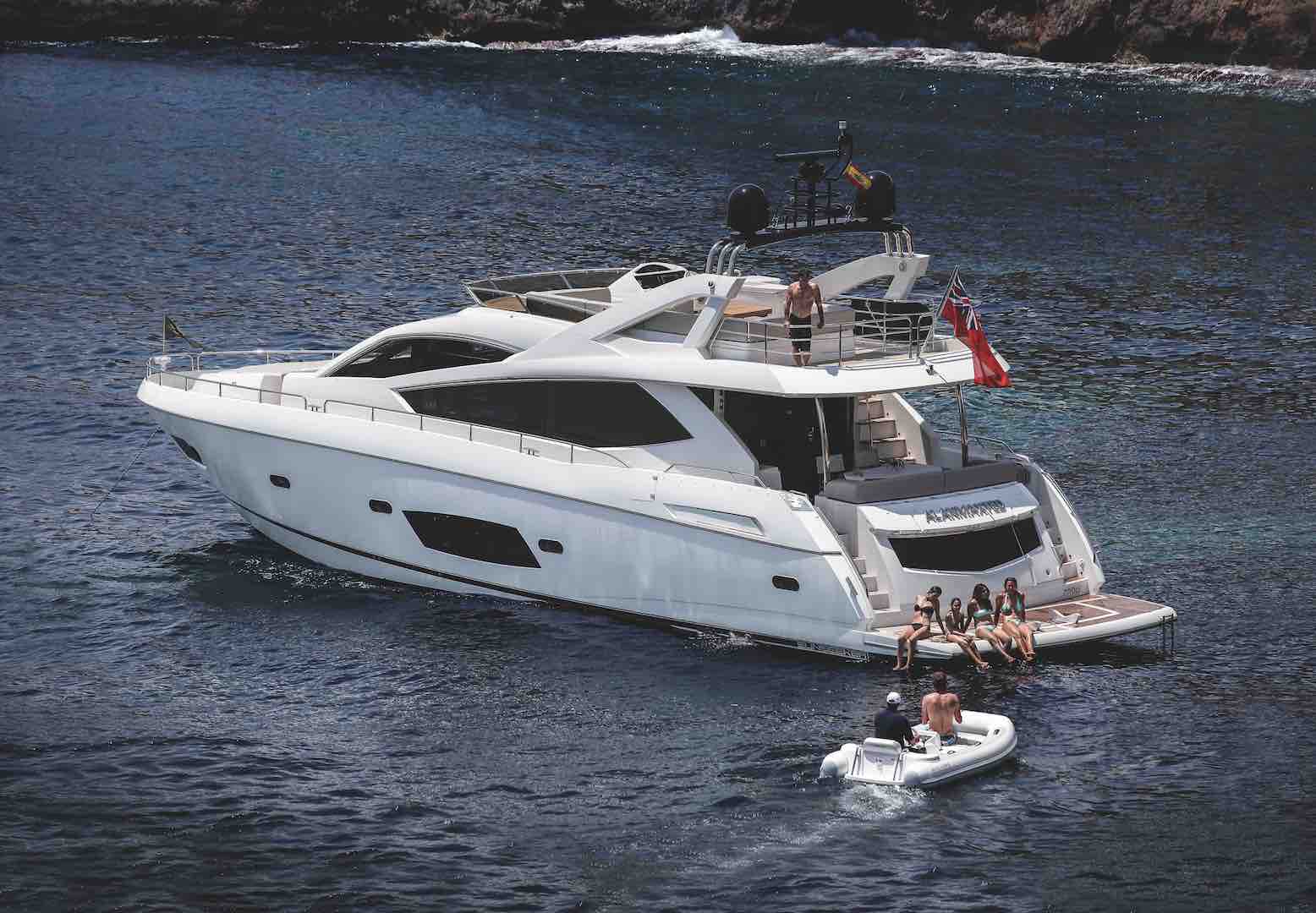

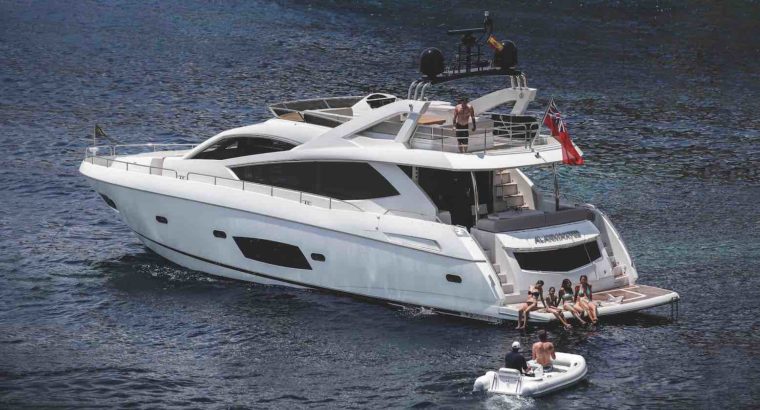

Sunseeker Manhattan 73

MANHATTAN 73

PRINCIPAL CHARACTERISTICS

Classification CE

Length Overall – Including Pulpit and transom platform Beam.  22.60m 74’ 2”

Beam.     5.73m 18’ 10”

Draft Shafts                 1.63m 5’ 4”

Displacement – Shaft @ half load.    46,000kg 101,000 lb.

Fuel Capacity.   5000L 1321 US gal

Fresh Water Capacity. 1200L 317 US gal

Black Water Capacity.   185L 49 US gal

Propulsion.      Twin fixed pitch propellers

Generators.      2 x 27 KW @ 50HZ 230v Single phase Up to 34 knots.

Maximum Speed.     Up to 34 knots.

Cruising Speed.     25 Knots

Range.      up to 320 nautical miles

Included Options Deck & Exterior

* Fresh water deck wash system with outlets forward and

aft including deck wash hose kit.

* Water purifier for ice maker – General Ecology Ultrafine in-

line system with spare cartridge.

* Additional pair 12″ Oval Mooring Cleats fitted to the aft

lower edge of the hull band facing aft.

* Chocks on platform for Tender.

* Chafing bars for all mooring cleats.

* Bow Sunbathing Cushions with folding back rests.

* Sunseeker Boat Mat x 2.

* Teak table with folding top fitted on a polished stainless

steel leg in the Lower Aft Deck.

* Fin Stabilizer system.

* Sleipner Hydraulic bow and stern thrusters with

simultaneous dual proportional controls.

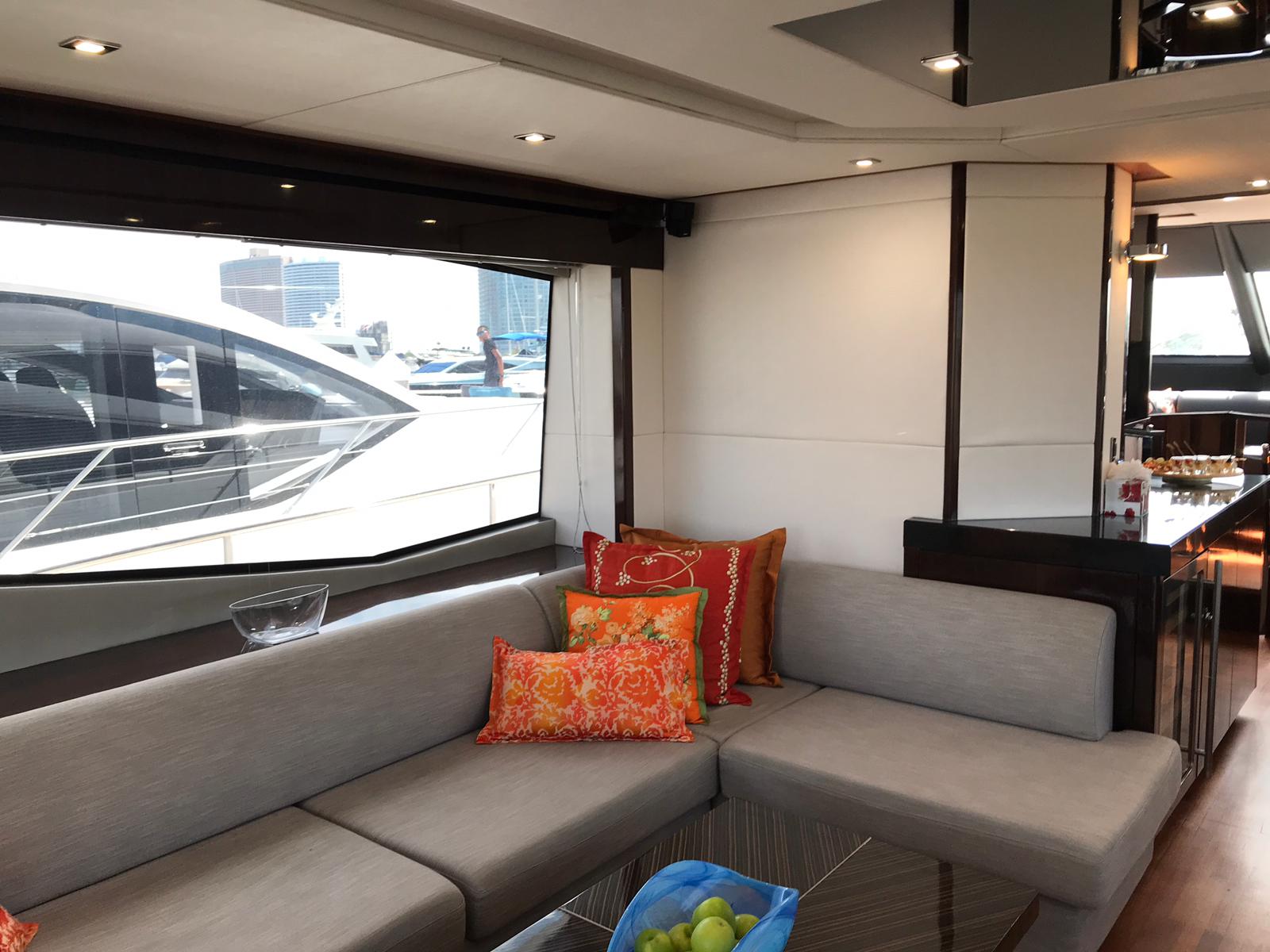

Interior

* Carbon fibre effect console panels.

* Roman Blinds in all cabins in lieu of standard curtains.

* Galley work tops to granite.

* Wood finish upgrade to Oak Satin finish.

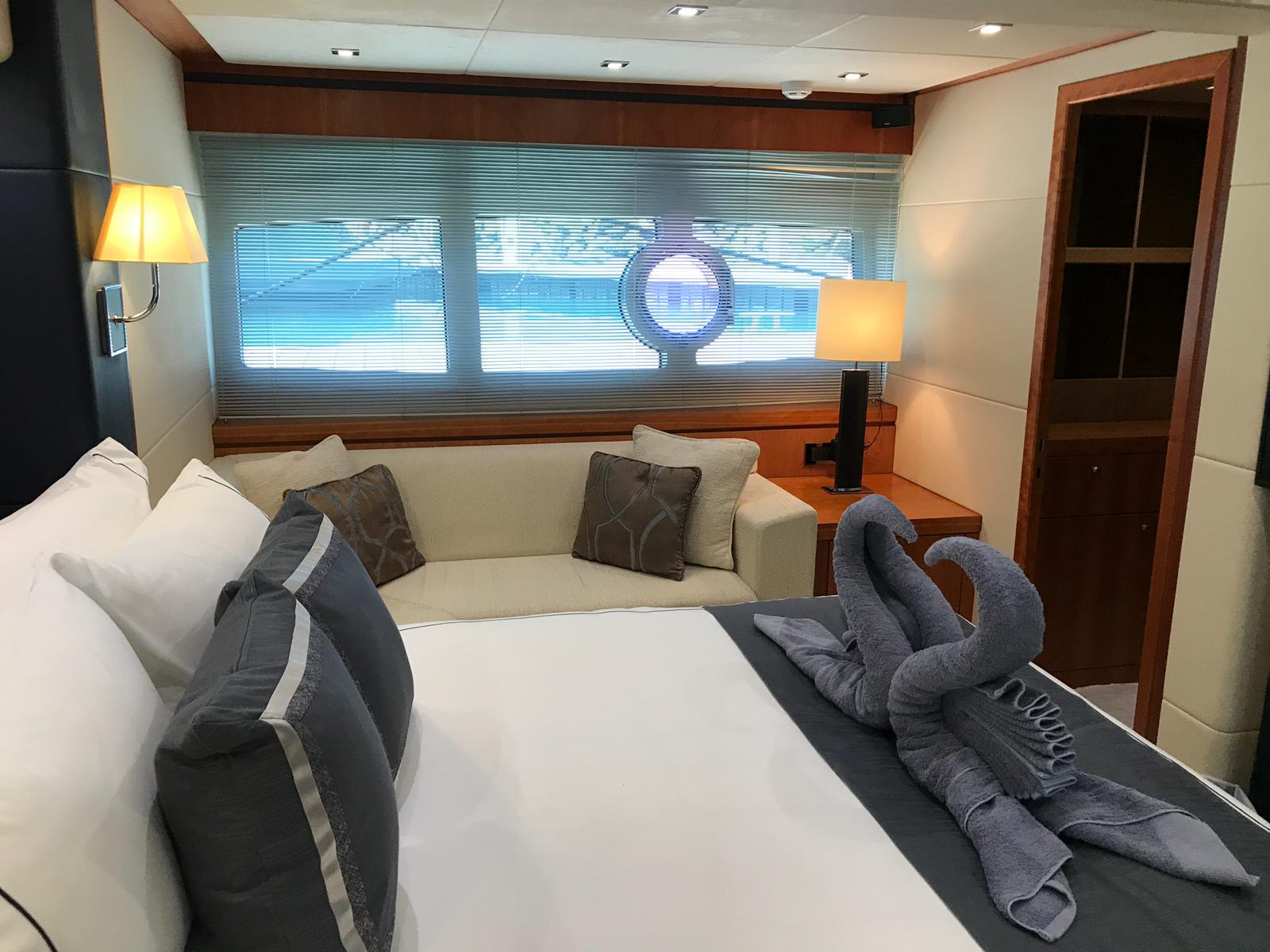

* Master and VIP cabins upgraded to sprung mattresses.

* Amtico LA22 Linear Jet planked flooring with edgebound

carpet in saloon and forward area.

* Amtico floor in dining area.

* Seperate bidet in master ensuite.

* Guest ensuit vanity top in granite.

* Console handrails to lower deck wrapped in leather.

* 22 x scatter cushions.

 Entertainment

* Samsung 55″ LED Television in the Saloon in lieu of 40.

* Bose lifestyle V35 Surround entertainment system with

Sumsung Blu ray player with Bose Ipod dockin the saloon.

* Apple IPod docking in all cabins linked to DVD & TV.

* Cockpit speaker upgrade from two Fusion Marine

waterproof 6″ speakers to two 7″ speakers with amplifier.

* Upgrade speaker system. Additional pair of Fusion 7″

Marine waterproof speakers and standard two speakers upgraded from 6″ to 7″ with 4 channel amplifier. 10″ Fusion subwoofer with amplifier for the Flybridge.

* Fore deck speaker system – Stereo removable waterproof speakers on stainless steel brackets and fixed waterproof remote control.

Appliances

* Marine Electric BBQ Grill on the Flybridge.

* Electric cooling unit for lower cockpit cool box.

* U-line Wine cooler in the saloon.

* Miele Novotronic WT2780 Washer-Dryer in the Crew Cabin. * Safe – 2 Brick with digital lock in master walk in wardrobe.

Lighting

* Low level LED side deck lights 8 per side white.

* Sashin twin beam search light.

* Underwater lights – Aqualuma white LED wide angle x 4. * Stern docking locks.

* Dimmer switches on interior lighting

Navigation

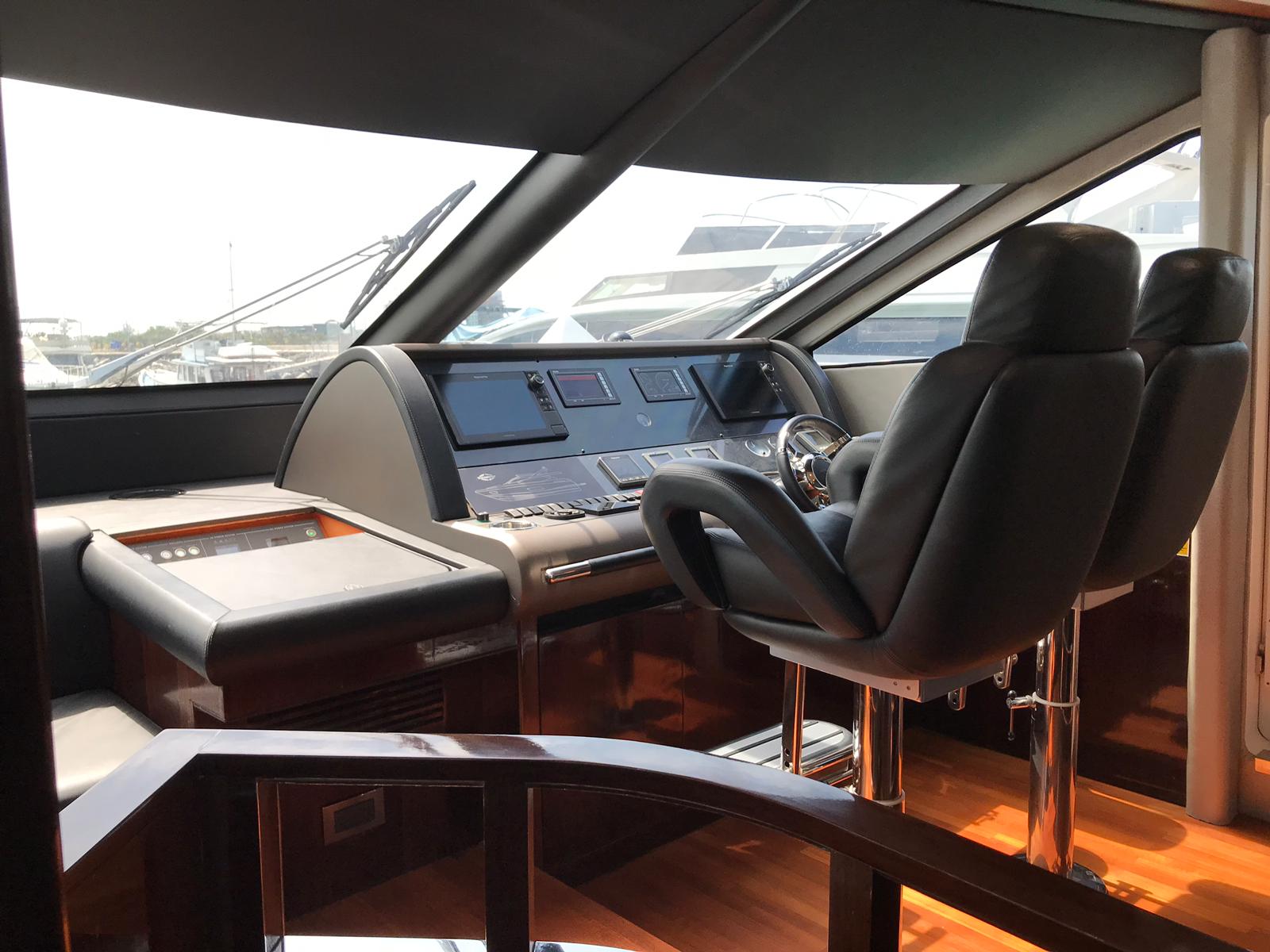

* Navigation Equipment – Raymarine E125 – 12″ Hybrid touch multifunctional display on lower console with E125 Hybrid touch multifunctional display on flybridge & Raystar 125 GPS Diff receiver with 4kw 48” open scanner in lieu of standard.

* Additional E125 – 12” Hybrid touch screen on main console and flybridge.

* Raymarine Autopilot system P70R colour display dual station.

* Raymarine I70 colour Speed and Depth multifunctional display on the lower console and multifunctional repeater display on the flybridge.

* Aerial 2.4 meter Whip for FM Radio to match VHF Aerial on Radar arch.

General Electrical

* Second Onan generator 27kw 50hz

* Aircon Tropical upgrade to chillers and air handlers with

shore power connection to run.

* Fire and bilge flood monitoring alarm system 7 zone .
